Volume flow measurement with mobile gas flares and OLLI

Climate protection and the reduction of greenhouse gas emissions are key challenges of our time, which we are addressing with expertise, passion and forward-thinking. For example, we develop mobile gas flares, gas detection devices and associated smart solutions that reflect the spirit of the times. As one of the market leaders in the segment of technologies for environmental and personal protection, Esders serves energy suppliers, the construction industry and the trades sector with innovative products.

Since the introduction of the EU Methane Regulation in August 2024 and the entry into force of the new regulations, the current focus is on the targeted flaring of methane to reduce emission levels. Mobile gas flares are one of the developments from Esders GmbH that involve the gentle and safe combustion of residual gas quantities during the commissioning and decommissioning of pipelines. The controlled conversion of methane into less climate-damaging CO₂ significantly reduces the greenhouse gas effect. Esders responds to these and other adjustments such as regulations and analyses the market and customer requirements in detail.

Reach OLLI with one click

Download

Commented excerpt from the EU Methane Regulation

We offer you a commented extract from the EU Methane Regulation, specifically tailored to the oil and gas sector. This document contains our assessments and innovative approaches to the current requirements.
Download our asset now and save yourself 55 pages of EU regulation texts.

Quantity measurement for more safety

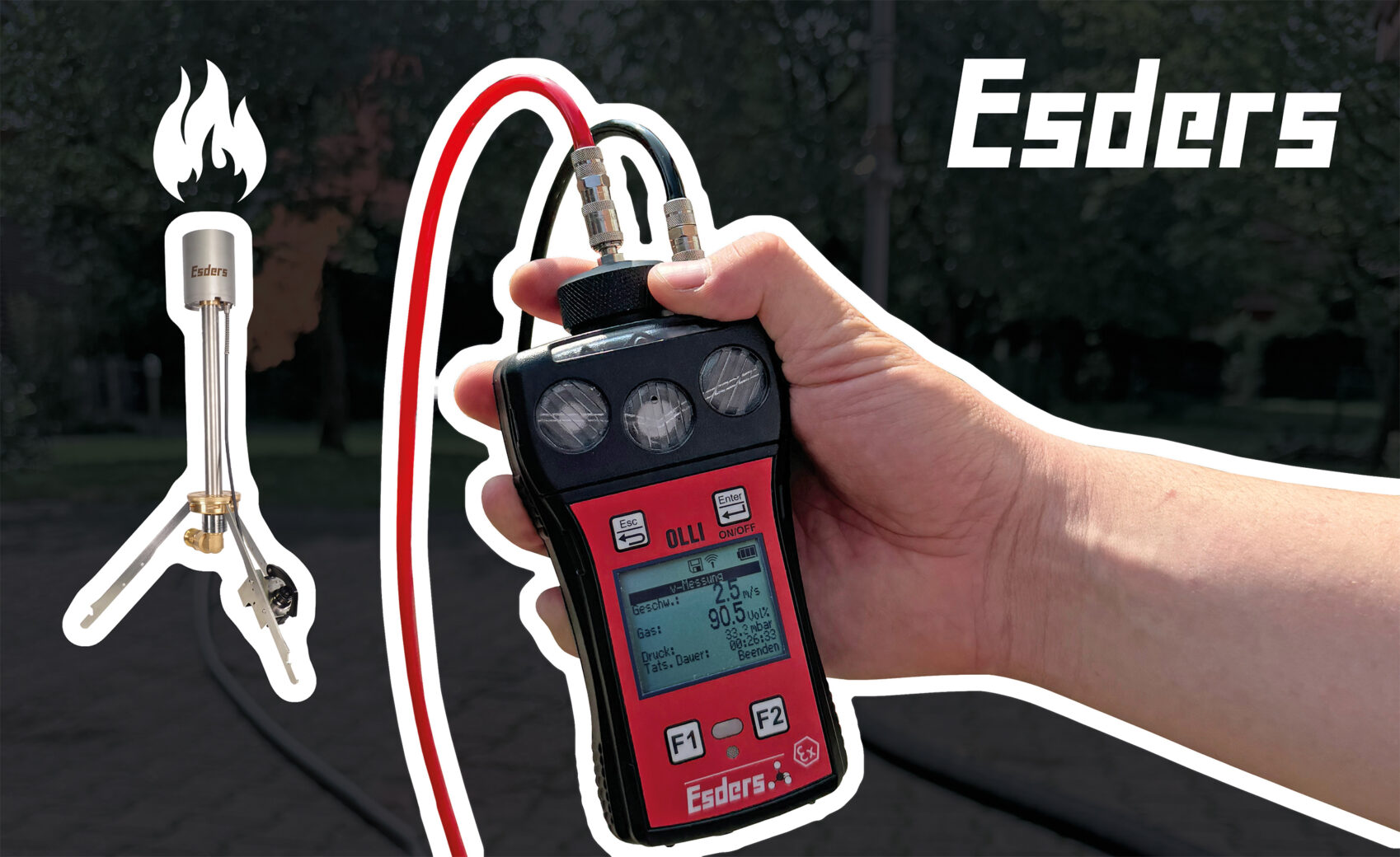

The Mobile Gas Flares were also developed from this experience and analysis, as was the OLLI gas measuring device. The OLLI offers a precise solution for velocity measurement during flushing processes in gas pipes. In combination with the Mobile Gas Flares, it not only enables the flow velocity in the pipe to be reliably determined, but also the volume of gas flared. This would fulfil an important requirement, namely the documentation obligations in accordance with the EU Methane Regulation for the implementation of the DVGW G 404 and G 465-2 regulations

Mobile Gas Flare S
Mobile Gas Flare S
Small-sized and quickly ready-for-use gas flare for safe flaring applications of natural gas, hydrogen or other combustible gases. For reduction of operational methane emissions during commissioning and decommissioning of gas service lines in the house connection area (according German DVGW worksheet G 404). Suitbale for emptying of gas tank facilities. - integrated piezo-ignition, up to 8 h with permanent ignition (1x AA battery) - ready for use in a few minutes, optimized for service lines - integrated flame arrestor for gases of explosion group: IIA, IIA1, IIB, IIC - H2-ready - max. operational pressure: 1 bar - max. volume flow approx. 8 Nm3/h methane at 1 bar - combustion efficiency under ideal conditions approx. 99% - connnection accessory available
Mobile Gas Flare M
Mobile Gas Flare M
Mobile and compact gas flare for safe and environmentally friendly flaring of natural gas, hydrogen or other combustible gases. To avoid operation-related methane emissions during commissioning and decommissioning of pipelines (according to German DVGW worksheet G 404). Suitable for supply/distribution lines, limited suitability for house connections. Suitable for emptying of gas tank/storage facilities. - integrated piezo igniter, continuous ignition up to 8 h (1x AA battery). - quickly ready for use, short set-up time, high flow rate and low-emission combustion - integrated flame arrester for gases of the explosion groups: IIA, IIA1, IIB, IIC - H2-ready - max. operating pressure 1 bar - max. flow rate approx. 40 Nm3/h methane at 1 bar - combustion efficiency under ideal conditions approx. 99% - connection accessories available separately
Mobile Gas Flare L - CH4 incl. transport case
Mobile Gas Flare L - CH4 incl. transport case
Mobile Gas Flare for safe and environmentally friendly flaring of natural gas and other combustible gases. To avoid methane emissions during operation, e.g. when releasing pressure, commissioning and decommissioning pipelines. Complies with the requirements of DVGW data sheet G 404. Suitable for supply/distribution lines and for emptying tank systems. - incl. transport case - quickly ready for use, short set-up time, high throughput and low-emission combustion - combustion efficiency under ideal conditions >99% - integrated flashback arrestor for gases of the explosion groups: IIA1, IIA, IIB1, IIB2, IIB3, IIB (thus also suitable for flaring natural gas with up to 30% hydrogen admixture) - integrated pilot flame with propane supply and piezo igniter, continuous ignition up to 8 h (1x AA battery), incl. 2 replacement batteries - max. operating pressure 2 bar (ensured by optionally available connection adapter with pressure reducer, item no. 402593) - flow rate of approx. 800 Nm3/h methane at an inlet pressure of >2 bar on the supply side before the pressure reducer in the connection adapter - connection accessories available separately
See the Mobile Gas Flares

Sustainability and innovation combined

Our solutions provide network operators with practical tools to improve both environmental and personal protection and to make an important contribution to the EU methane strategy and national climate targets.
