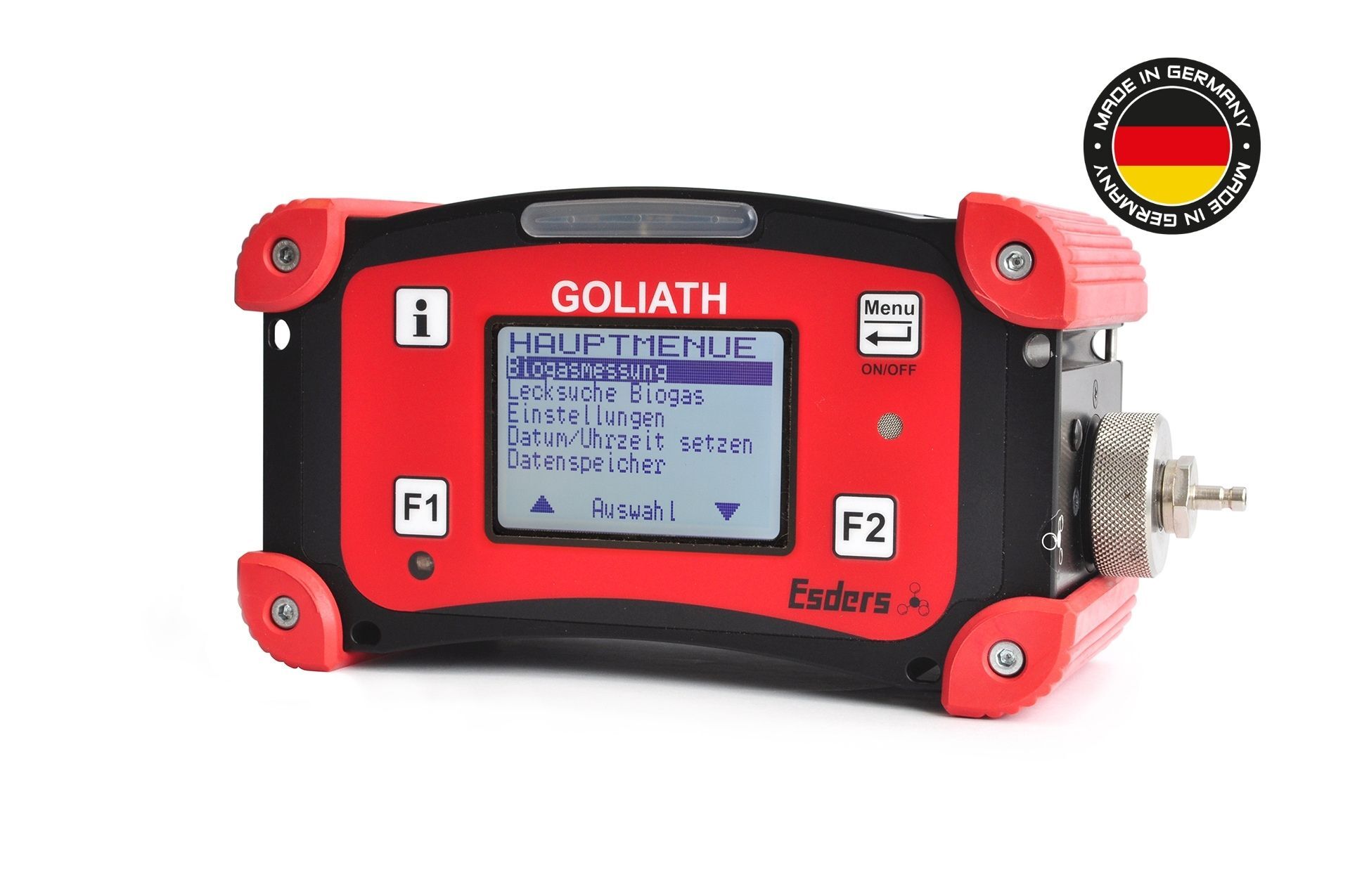

GOLIATH Biogas - 201057

Variant:

Robust, explosion-proof gas detector with built-in membrane pump and rechargeable NiMH battery pack, specifically for use with biogas, landfill gas and sewage gas. Operating time > 8 to > 12 hours depending on the application (without lighting) Measurement ranges: - methane 0 - 100 Vol.% CH4 - carbon dioxide 0 - 100 Vol.% CO2 - oxygen 0 - 25 Vol.% O2 (optional) - hydrogen sulphide 0 - 100 ppm H2S (optional) - hydrogen sulphide 0 - 1000 ppm H2S (optional) - hydrogen sulphide 0 - 2000 ppm H2S (optional) Dimensions: 200 x 100 x 87 mm Weight: approx. 1200 g Explosion proofed instrument: Sign: ll 2G Ex ib d llB T3/T4 Gb BVS 09 ATEX E 079 X Temperature range: -10°C < Ta < +40°C

Select the required device options for your device here.

Description

In the field of biogas, landfill gas and sewage gas production the observation and check of the gas composition, and the inspection of the facilities for unexpected gas leaks are an inherent part of work processes. The GOLIATH is ready for use after a short run time and offers clear and very fast results. The used infrared sensor technology shows the concentrations for methane and carbon dioxide in a reaction time of less than 10 seconds. The rugged, shockproof device is easy to use. All measured values can be read in the clear, backlit display and can be saved as needed.

LDAR - Leak detection and repair of methane and carbon dioxide

The GOLIATH biogas offers another menu item „leak detection“. This will provide an additional field of application for the detection of leaks at all biogas containing parts of the plant.

Documentation of measurements

Data readout to PC via USB through charging cradle infrared link.
Network compatible windows-software with extensive features for further characterization and storage of measurements in a database.
Report output in PDF and HTML format.

Features

Use of infrared sensors for CH₄ and CO₂ guarantee fast run-in period and extremely short response times and exclude cross-sensitivities to other gases.
An oxygen and a hydrogen sulphide sensor are offered as an option.
The measurement range for H₂S is 0 to 2,000 ppm and cover the requirement for measurements at biogas plants ideal.
