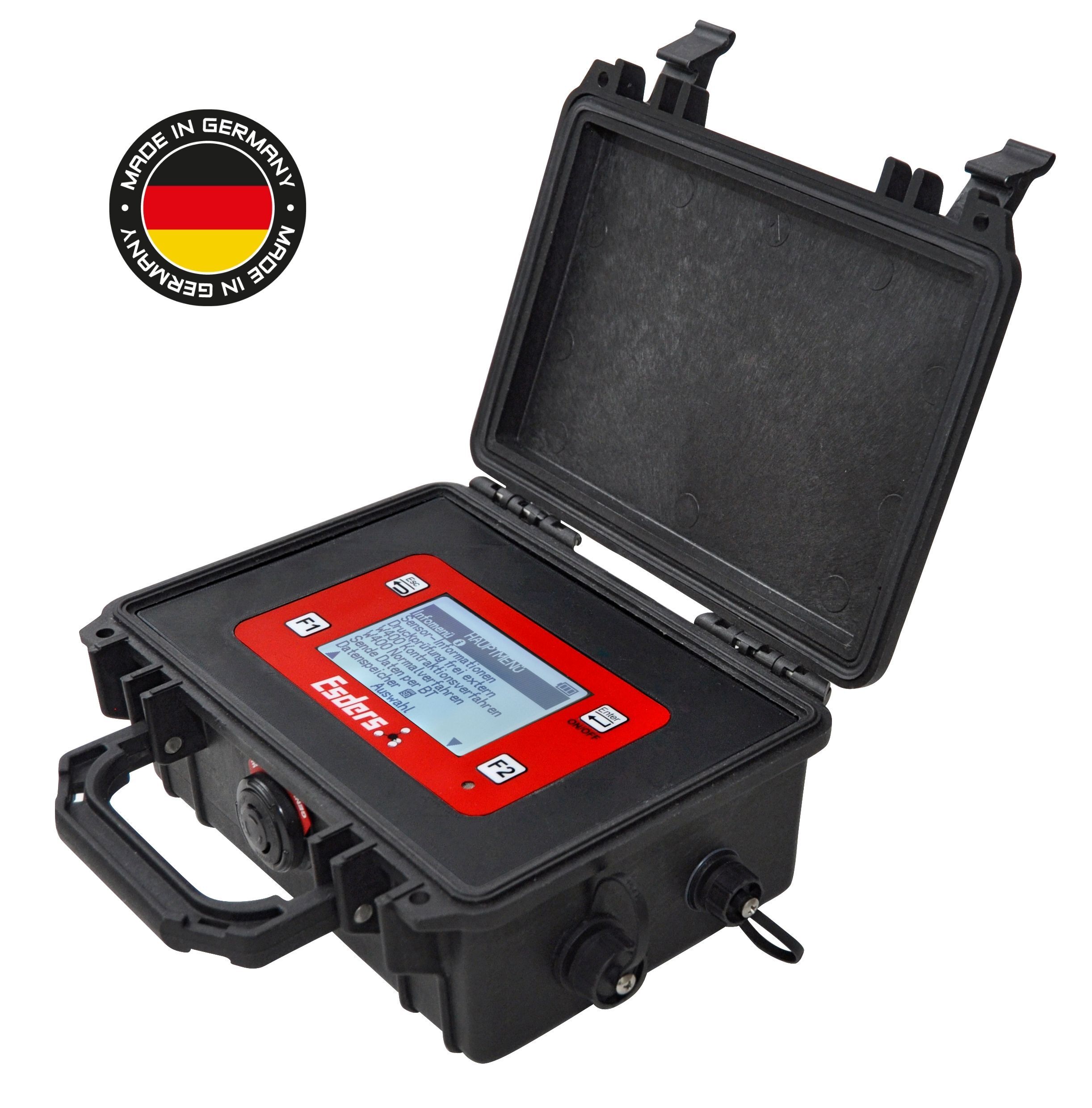

Electronic pressure measurement case for pressure tests with the option of connecting up to five external sensors (type EDS2). - the test procedures are menu-guided and can be carried out with simple data entry dialog - a freely programmable pressure test is included - optional test sequences for gas and water tightness tests e.g. according to DVGW, ÖVGW, EWE, Avacon, WEVG - a subsequent addition of test sequences is possible easily - large, illuminated display, even in direct sunlight easy to read - data entry and signature via touch display and foil keys - stylus for the touch display included - data memory for hundreds of measurements, depending on test sequence - wireless communication with an external device for updates and data transmission (costs apply for data transfer to the cloud) - LTE / GPS module (optional) - robust case (IP 67) - operating time approx. 200 hours, extension with power supply possible from outside Dimensions: 220 x 90 x 168 mm Weight: approx. 1450 g

Select the required device options for your device here.

Description of pressure measuring device smart memo

We make pressure tests on gas, water and wastewater pipes smart!

The smart memo is our multifunctional pressure test kit for all pressure test applications in the field of gas and water supply, sewage disposal and pipe infrastructure. Using menu-guided, pre-programmed test procedures, the smart memo guides the user step by step through a test. For each test, the smart memo provides a test report with all details and an evaluation of the test - all in compliance with standards and regulations! The documentation of the test is done digitally, paperless and centralised via the Esders Connect Portal.

The smart memo can be configured to suit your individual requirements using the appropriate software options. We offer suitable external sensors for each test, which can be easily connected to the smart memo. Any updates, functions and test sequences that are required at a later date can be easily downloaded online. The big advantage for you is that the upgrade can be carried out fully automatically from your workstation.

We have the right automatic tests and sensors for every application. If you have any questions, please feel free to contact us.

Features of smart memo

Small and handy – half the size of a DIN A4 sheet
Smart, linkable external sensors for e.g. pressure, temperature, flow, level etc.
Modular concept of sensors, freely configurable options
Long operating time, large & illuminated display, robust case – ideal for any construction site
Menu-driven test sequences, fully automatic tests and smart time-saving functions
LTE data transfer and GPS position data storage (optional)
Integrated wireless data transfer for connecting to the Esders Connect App
Paperless documentation, automatic generation of test protocols and digital data management via Esders Connect

Data transmission

As an environmentally conscious and future-orientated company, we want to do away with printing on thermal paper on the construction site and make your day-to-day work easier at the same time. Use the inspection report dispatch directly from the construction site including the GPS position and legally compliant signature - fast, paperless and GDPR-compliant. You have the option of entering up to three email addresses in the smart memo to send the completed inspection reports directly from the device (prerequisite: optional LTE module).

If your smart memo does not have an integrated LTE module, you can use the Esders Connect app to connect any mobile device (Android, iOS, Windows) to the measuring device via the smartphone connection and view measurements, enter additional data and send test reports.

With the integrated user-defined data acquisition, additional data such as signature, project number, inspector, etc. can be added to a measurement and the associated test report via the touch display. Alternatively, the data can be entered via the Esders Connect app using a mobile device. Further information on user-defined data acquisition can be found here.

The costs for transmitting a test report are calculated transparently per measurement and are cheaper than the previous costs for printouts with a printer. In our browser-based Esders Connect Portal, all measurements sent can be viewed from anywhere at any time. In addition to digital measurement data management, you can benefit from other advantages of the Esders Connect Portal, e.g. digital quotation and order management, device management, service management, etc.

You can find more information about Esders Connect here.

Live measurement - control the test from your office

Discover the benefits of our new ‘live measurement’ function in smart memo and the advantages of remote transmission of measurement data from an ongoing test.

Live measurement is a data transfer of the ongoing measurement at regular intervals so that the progress of the test can be monitored remotely. Live measurement thus enables the user to view the ongoing test at any time, so that personnel do not necessarily always have to be on site, even for longer test times and automatic test procedures.

Live measurement is currently available for most menu options in the smart memo, e.g. for all water pressure tests according to W 400-2, EN 805, ÖVGW W 101 and SVGW W4. Use live measurement in combination with our fully automatic pressure test and save time and manpower!

The option can be installed on any smart memo with an LTE module. The live measurement is part of the "Digitisation" smart memo annual fee option. Once the option has been booked, the function can be installed on the smart memo via the Esders Connect app.

Options in the pressure measuring device smart memo

Device options in the smart memo include one or more independent menu items. Most of these are menu-guided test sequences for carrying out pressure tests that are programmed in accordance with national or international regulations or special company guidelines. Many of these pressure tests are standard procedures in the field of pipeline construction, e.g. gas pipelines, water pipelines, wastewater pipelines.

Your smart memo can be individually configured with these options. All options can be booked subsequently and can be installed easily via the Esders Connect app. For each option, you will find a suitable external sensor (EDS2) that meets the individual requirements of the underlying control system.

Water pipeline area:

Gas pipeline area:

Waste water area:

Indoor installation area:

Other menu options:

Smart function: early verification that there is no air in the system during water pressure tests

Every water pressure test according to the regulations DVGW W 400-2, EN 805, ÖVGW W 101 or SVGW W4 includes a check to ensure that there is no air in the line to be tested. As a preparatory measure for the test, the line must be filled ‘completely and without air’. If there is too much residual air in the line, it can affect the result of a pressure test and, in the worst case, cause a leak in the line to go undetected. To check that there is no air in the line, a pressure drop test is required in each test procedure, which usually takes place after the pressurisation phase and a pressure maintenance or stabilisation phase.

With our additional smart function, we can predict much earlier whether the pressure drop test will fail due to excessive air content or not.

Read all the details about checking for no air in the system with the smart memo and MPP 30-30 here.

Fully automatic water pressure tests

For all water pressure tests, we now offer the appropriate modules for performing fully automatic pressure tests.

Our new generation of motorised test pumps can be controlled remotely by the smart memo, so that pressure build-up and holding phases run automatically. We have also automated the pressure drop test! Simply perform the pressure drop test automatically with the EDS2 automatic drain system!

All modules can be used individually or as a complete set.

With a fully automatic pressure test, you just start the test and the smart memo does the rest. Find out how it works here.

NEW: Level measurement for sewage manholes according to EN 1610

In addition to external sensors for measuring parameters such as pressure, temperature, or flow, the EDS2 level probe is now also available as an external sensor for the smart memo. The level probe enables leak tests on wastewater manholes and pipelines in accordance with the requirements of EN 1610.

All information on the measurement technology and how to perform the leak test using the level measurement method according to EN 1610 can be found here.

Technical Data

Dimensions	WxHxD approx. 220 x 90 x 168
Weight	approx. 1450 g
Display	240 x 160 Pixel, touch display and backlight
Power supply	Lithium-ion 7,2 V 10.000 mAh
Charging time	approx. 8 hours
Charging	Power supply or car adapter, 12 V
Operating time (without backlight, 20 °C, one sensor)	approx. 200 hours, every additional sensor -10 %
Operating time (with backlight 20 °C, one sensor	approx. 100 h
Operation and charging at the same time	yes
Operating temperature	-10 to +40 °C
Storage temperature	-20 to +60 °C
Data storage	> 2.000.000 measured values (several thousand measurements, depends on the measurement time)
Protection type	IP 67 (when lid and protecting caps are closed)
Number of connectable sensors EDS2	up to 5 pieces
Max. cable length for sensors	all in all approx. 100 m
Wireless data transfer	Interface for measurement data transfer, printer and updates/upgrades
LTE (optional)	E-mail

Tutorials

How do I transmit the data of the after a completed pressure test via LTE?

Martin Esders explains exactly how they do it in the video.

How does the smart dynamic pressure test function work?

The dynamic pressure test saves time if less adjustment time is required. It also increases the chance of passing the test if the recommended adjustment time is not sufficient. The dynamic pressure test is a newly developed, smart function that you can use for the first time in our smart memo and that supports you in your work in the best possible way.

Watch the video to find out more.

How does the connection with external sensors work?

Martin Esders explains in the video how the different external sensors are connected and recognised by the smart memo.

Do you need to carry out a G 469 B3 test?

In the video you can see in detail how easy it is with the smart memo.

In the video you can see which accessories you need for a tightness test according to ZTV TKNetz 40 and how to connect them properly.

Carrying out the tightness test according to ZTV TKNetz 40.

In the video, Dr Johannes Hopster explains how you can test the speed pipes of a fibre optic network for leaks.
