Laser HUNTER - 251220

Variant:

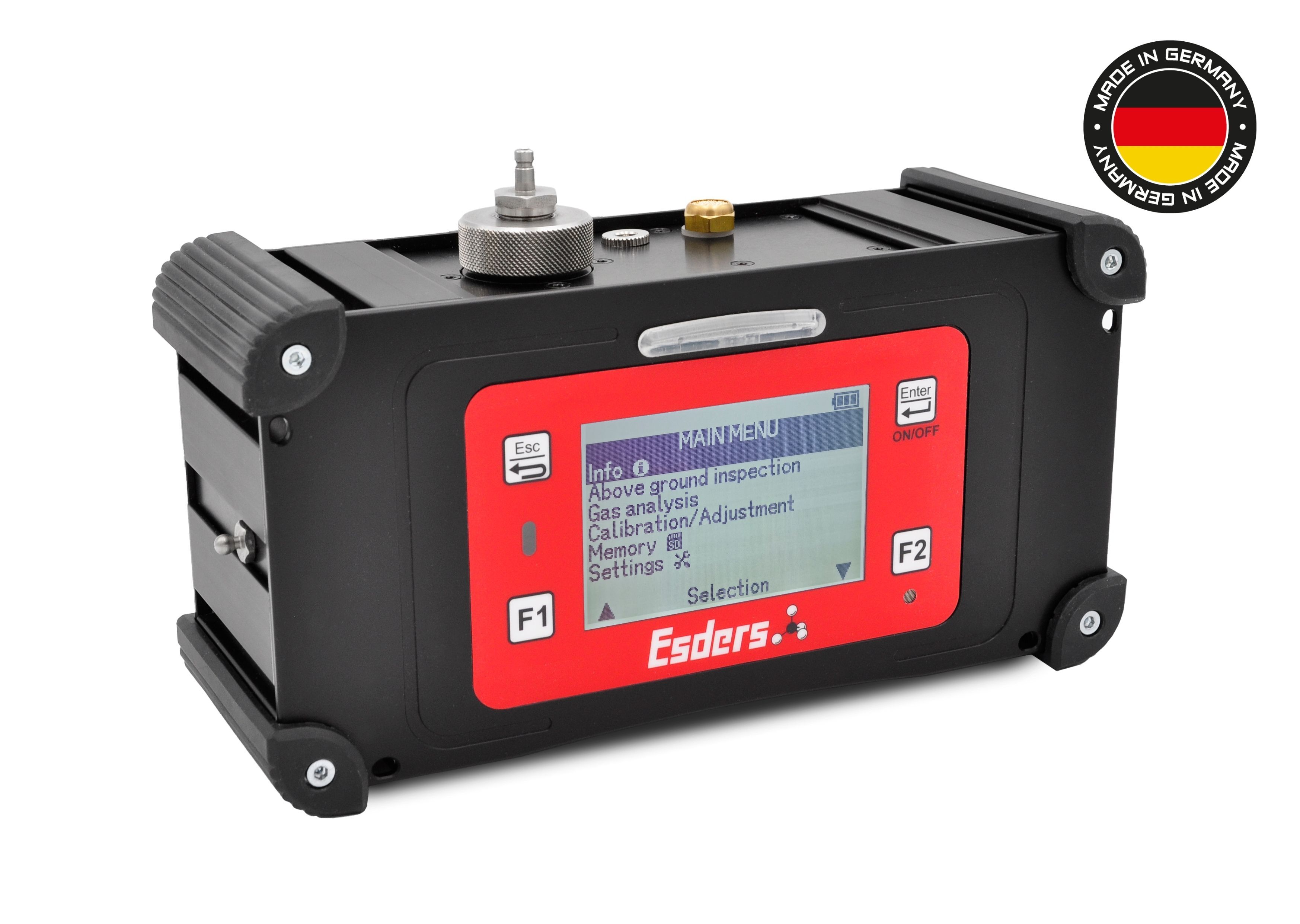

Highly sensitive and selective gas detection & gas measurement device with laser technology for the inspection of underground gas pipes using suitable probes (e. g. carpet probe). The device can also be used for the vehicle-based pipeline inspection. With built-in diaphragm pump, wireless data transfer and rechargeable Li-Ion battery. One out of two different laser modules can be assembled: - single laser module for methane or - dual laser module for methane & ethane Moreover, the device can be equipped with additional sensors to enable further applications. The following applications are possible: - Inspection of underground pipes - Inspection of accessible pipes in buildings - Inspection of accessible pipes on plants, etc. - Inspection of ground soil for pinpointing (optional) - Purging of gas pipelines (optional, only in combination with pinpointing) - Gas analysis (with dual laser module) Operating time up to 10 hours Measurement range depending on built-invsensors Dimensions (LxWxH): 143 x 240 x 85 mm Weight: 2.1 kg Temperature ranges: 0 °C to 40 °C (dual laser module) -10 °C to 50 °C (single laser module)

Select the required device options for your device here.

Description

The Laser HUNTER is a highly sensitive and selective LDAR (leak detection and repair) gas detection device for the systematic pipe network inspection of buried gas pipelines. Due to the innovative laser technology, cross-influences caused by humidity or exhaust gases are excluded. The laser module is available in two variants. In the dual version, the sensor can be used for a quick and uncomplicated differentiation between natural gas or digester gas (ethane analysis) to avoid time-consuming and costly pinpointing in the case of digester gas. If desired, the device can be equipped with additional sensor technology to enable further applications in the course of pipe network inspections. So you have everything in one device!

Features

Innovative laser technology as single laser (CH₄) or dual laser (CH₄ & C₂H₆)
Reliable measurement of smallest gas concentrations, no cross-influences due to humidity or exhaust gases
Selective measurement of methane and ethane for rapid differentiation between natural gas and digester gas
Individual configuration of the sensor technology enables different areas of application
Functions and menu according to DVGW worksheet G 465-4
Fast and uncomplicated display test
Calibration and adjustment directly on the device
Operating time of at least 10 hours for an intensive working day
Wireless data transfer for quick and easy data transmission
Connection to Esders Pi NOTE (GIS software) available for complete documentation

Laser HUNTER at the core of a modular system for every application

The Laser HUNTER can be used as the core of our modular system for pre-location.

The Laser HUNTER is the central element of the modular system for above-ground leak detection and gas concentration measurement. Since the revision of the DVGW regulation G 465-1 in 2019, various forms of above-ground inspection have been approved. The modular design offers the right solution for every application – flexibly combinable with just one Laser HUNTER as the detection device.

Depending on the terrain and requirements, different carrier systems are used:

from the classic carpet probe (TS14) or bell probe for manual inspection, to the e-scooter with carpet probe for urban routes, to the quad bike with suction bar and pump unit for rough terrain. The GasCar Laser HUNTER is available for efficiently testing large areas in accordance with DVGW G 465-1 – a vehicle-based solution with an integrated suction system.

Thanks to the modular system, the detection performance remains constant, regardless of the vehicle system – thus enabling seamless and standard-compliant inspection of gas pipes in any location.

Quantification of methane leakage in combination with the Vakumobil

The Laser HUNTER can be used not only for highly sensitive leak detection, but also for quantifying methane emissions in accordance with DVGW G 425-2. In combination with the Esders Vakumobil, natural gas is extracted through specially developed probes, while the Laser Hunter detects the methane concentration in the extracted air stream. These measured values, together with the known volume flow of the Vakumobil, enable a precise calculation of the methane leakage rate at the measurement point. The combination of the two devices thus offers an effective solution for network operators who want to document their methane emissions and reduce them in accordance with the EU Methane Regulation.

How do I perform a 10 ppm test with the Hunter or Laser Hunter?

Technical Data

Display	LCD graphic display 128 x 64 Pixel, illuminable Display of measured value, maximum value and bar graph
Power supply	Lithium-Ionen 7,2 V 6.700 mAh
Charging	Charging cradle supplied by 12 Volt or 230 Volt approx. 5 hours
Operating time	> 10 hours (without backlight)
Operating temperature	0 °C tot +40 °C (dual laser module) -10 °C to +50 °C (single laser module)
Data Store	> 2.000.000 measurement values (depending on the duration of the measurement)
Protection category	IP 52
Dimensions	230 x 115 x 85 mm without couplings
Weight	ca. 2.100 g
Measurement principle	Laser, infrared, electrochemical,
Measuring range/ Display range	0 to 1.000 ppm CH₄, Resolution: up to 0,5 ppm 0,1 to 2,2 Vol.% CH₄, Resolution: 0,01 Vol.% 15 to 1.000 ppm C₂H₆, Resolution: 5 ppm 0,1 to 100 Vol. CH₄, Resolution: 0,1 Vol.%^* 0 to 20 Vol.% CO₂, Resolution: 0,1 Vol.%^* (Display range up to 100 Vol.%) 0 to 25 Vol.% O₂, Resolution: 0,1 Vol.%^*
Pump capacity	> 80 l/h, > 300 mbar

^{* Optionally configurable}
