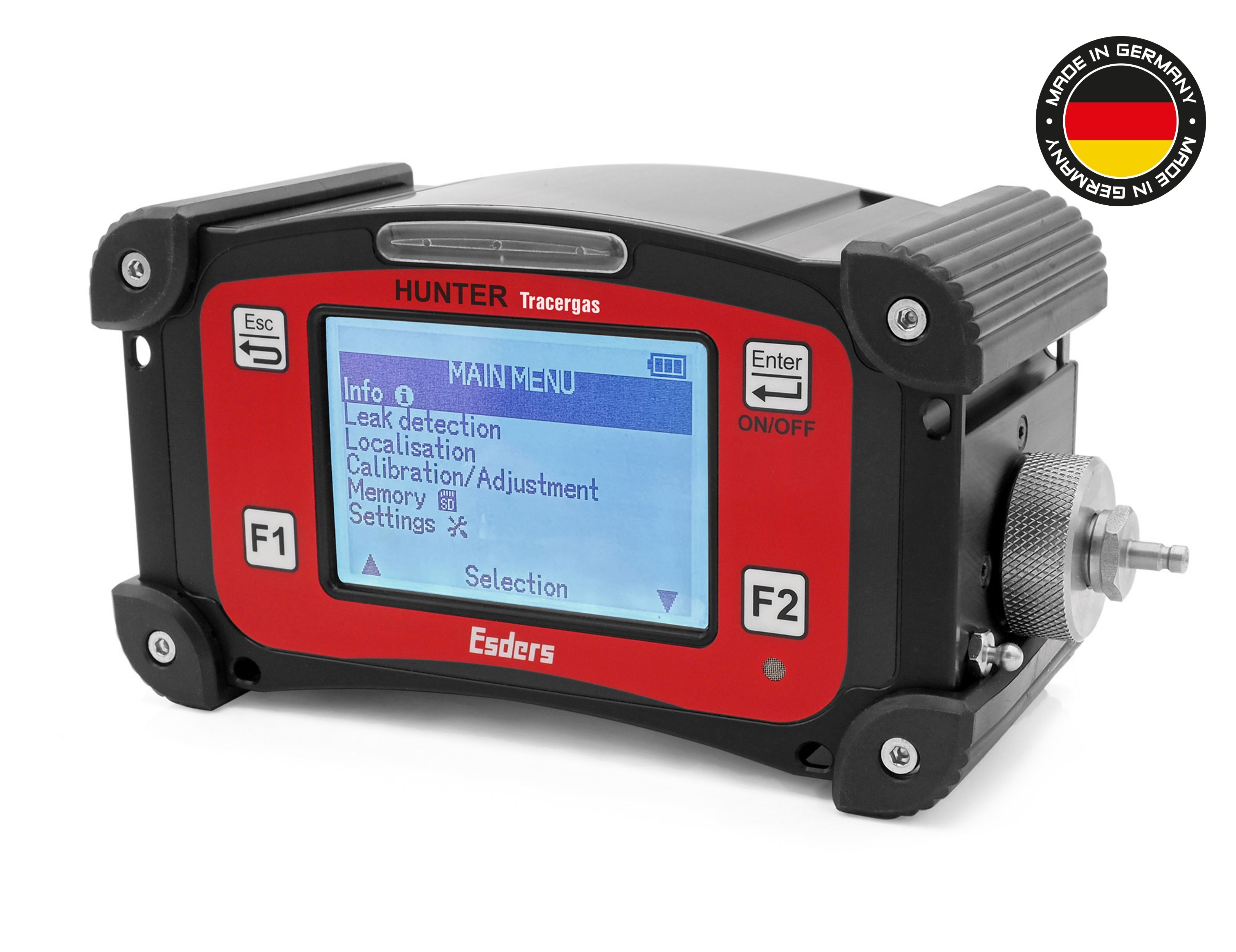

HUNTER Tracer Gas - 251230

Variant:

Gas detection device for easily locating even the smallest leaks in pipes using forming gas (5 Vol.% H2 in N2) - highly sensitive hydrogen sensor with a resolution of 0,1 ppm H2 - extremely fast reaction to the smallest traces of hydrogen - second sensor for pinpointing in probe holes - integrated pump with high power for flow and for negative pressure Operation time: > 10 hours without lighting Measuring ranges: 0 to 1000 ppm H2 0 to 5 Vol.% H2 in N2 dimensions: approx. 200 x 100 x 87 mm weight: approx. 1100 g

Quantity

Description

Forming gas has been used for a long time to locate leaks that cannot be found with the standard methods, electro-acoustic leak detection or correlation. With this method (also called tracer gas), the gas (5 vol.% hydrogen and 95 vol.% nitrogen) is injected into the pipeline under pressure.

It is then transported through the water pipe and escapes through the leak after a short time. The hydrogen contained in the forming gas is lighter than air and rises upwards. At the surface, it can be easily detected with the HUNTER Tracer Gas and corresponding probes and the leak can be localized in this way. The method offers advantages when acoustic methods reach their limits, e.g. due to increasing noise pollution from road traffic and plastic pipelines. It also saves expensive and time-consuming excavations at suspected leakage points.

The new HUNTER Tracer Gas is the consistent further development of our previous popular model. We have retained the proven technology, e.g. the semiconductor sensor for the gas detection range. This means that a very fast reaction time and stability of the measured value are still achieved, so that even the smallest spread of gas can be reliably detected. For better readability, the device has a significantly larger display with higher resolution. In addition, the communication options via Bluetooth have been expanded to enable a connection to our online portal Esders Connect.

Technical data

Display	LCD graphic display with 240 x 160 pixels; with touchscreen functionality; illuminated; display of measured value, maximum value and bar chart
Power supply	Lithium-ion 3,6 V, 6.700 mAh
Charging	230 V power supply unit or car adapter, 12 V, approx. 5 hours
Operating time	> 10 hours (without illumination)
Operating temperature	-10 °C to +50 °C
Data storage	> 2.000.000 measured values
Protection	IP52
Dimensions	205 x 105 x 86 mm incl. connection nipple
Weight	approx. 1.115 g
Measurement principle	semiconductor, thermal conductivity
Measuring ranges	0 to 1.000 ppm H₂, resolution: up to 0,1 ppm 0,1 to 5,0 vol.% H₂, resolution: 0,1 vol.%
Pump capacity	> 40 l/h, > 300 mbar
