Lecksucher LS 01 - 581003

Variant:

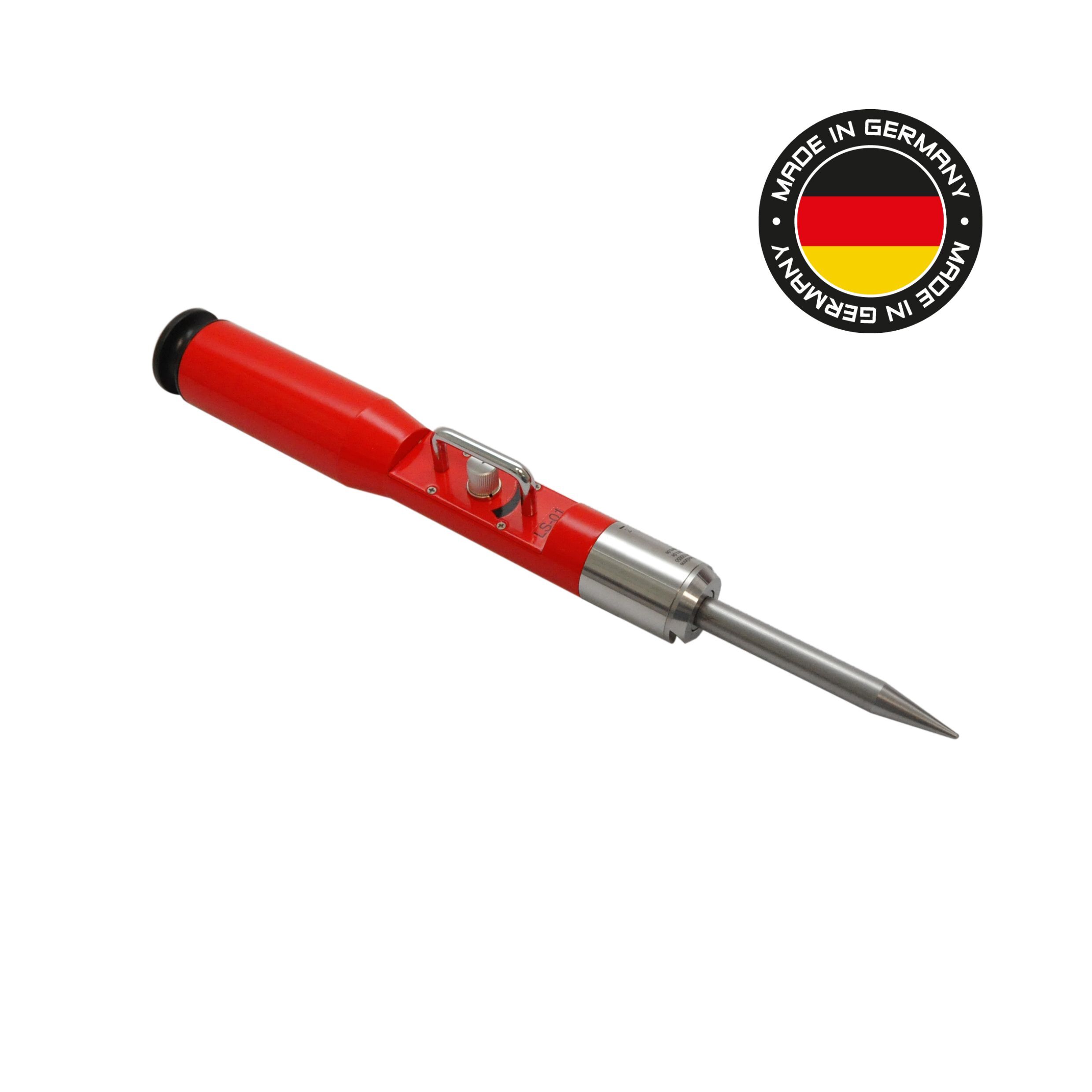

LS-01 Leak detection set with headphones Acoustical leak detection system with high sensitive microphone technology for water networks and house installation. Set consists of: - 2 extensions 370 mm aluminium - short tip stainless steel - comfort headphone - carrying case with foam insert

Quantity

Description

Pressurised water creates noises when escaping which propagate across the water column, pipe and soil. These noises can be recorded, amplified and made audible to the human ear with the LS 01.

The LS-01 has been developed by experienced specialists as a listening device to prelocate and pinpoint leakages in water networks and indoor water installations. The device is characterized by its low weight and easy operation. The microphone technology allows to record noises over a very large spectrum. The LS-01 is suitable for all pipe materials as the frequency response of the microphone is between 35 Hz and 2000 Hz. The LS-01 is suitable for all applications of leak detection and noise detection as a monitoring device for fast use with a short tip or brought to test rod length by two extensions. A resonance plate and a magnet in the accessories program make it possible to detect underground noises or leakage noises in the installation area or on solid surfaces. The LS 01 is operated via a volume control and a button for activating the amplifier. The signals are transmitted to the user's ear via headphones.

Features

Listening system for water networks and indoor water installation
High sensitivity for sound in the range of 35 Hz to > 2000 Hz
Very durable by use of high-grade steel and aluminium
Light weight, easy to operate system
High sensitive microphone technology
Also suitable for non-metallic systems
Accessories for leak detection in house installations, like plate and magnet

Technical data

Frequency range	200 Hz – 2000 Hz
Mikrophone	Piezo electric
Protection type	IP54
Construction	aluminium, stainless steel
Battery	9V - Block
Battery capacity	approx. 30 hours
Temperature range	-15 °C to +50 °C
Weight	approx. 570 g
Dimensions	L = 360 mm, d = 30 mm
